High Precision Substrate CCD Drilling Machine For PCB Products

    Buy cheap High Precision Substrate CCD Drilling Machine For PCB Products from wholesalers

    Buy cheap High Precision Substrate CCD Drilling Machine For PCB Products from wholesalers
    • Buy cheap High Precision Substrate CCD Drilling Machine For PCB Products from wholesalers

    High Precision Substrate CCD Drilling Machine For PCB Products

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YS-Extra D6-2530
    Certification : CE
    Price : USD 68000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10
    Delivery Time : 20work days
    • Product Details
    • Company Profile

    High Precision Substrate CCD Drilling Machine For PCB Products

    Highlight:

    High Precision PCB drilling machine

    ,

    Substrate CCD drilling equipment

    ,

    SMT production line drilling machine

    Max Speed Of spindle :
    200krpm
    Thickness:
    ±0.002mm
    Cooling Requirement:
    17℃-20℃
    Temperature :
    22±2℃
    Humidity:
    50%-65%
    High Precision Substrate CCD Drilling Machine For PCB Products
    High Precision Substrate CCD Drilling Machine For PCB Products
    High Precision Substrate CCD Drilling Machine For PCB Products 0

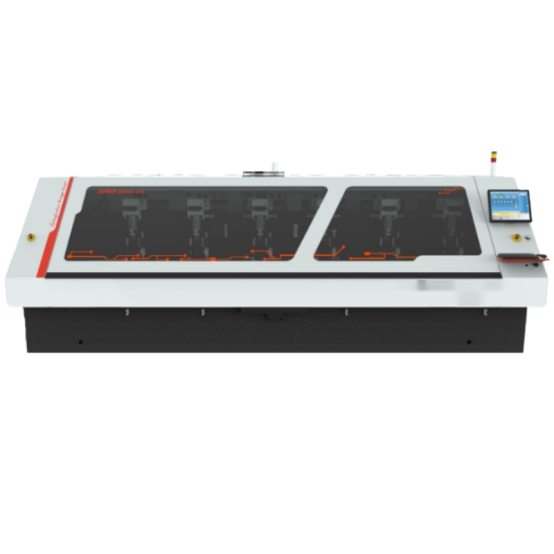

    This advanced drilling machine is specifically designed for high-precision PCB products including LED panels, optical communication module boards, HDI mobile phone boards, and aluminum server boards.
    High Stability Performance
    • Germany SIEB & MEYER CNC 84.00 or 95.00 control system
    • Stable anti-interference optical fiber technology
    • Optimum operation via digital drive technology
    • X-axis with absolute linear scale, resolution up to 1 nm with strong resistance to dust pollution
    Precision Drilling Capabilities
    • Auto fiducial mark recognition and registration algorithm for board stretch, shrink and tilting error compensation
    • IWS (Independent Work Station) Structure with offset, rotation, and scale compensation for each board
    • High-precision Blind Hole Processing Function with CBD Depth-controlled drilling accuracy: ±0.015mm (VEGA testing condition)
    • 3D back drilling technology (Optional) with back drill stub length control process capacity up to 2~6mil
    • See-Hole-Drill-Hole process scans through-holes with high-definition camera and individually compensates for each hole's offset
    Technical Specifications
    Machine TypeD6-2530
    X/Y Axis Velocity90m/min
    Z Axis Velocity50m/min
    Number of Axis6
    Max Speed of Spindle200krpm
    Drill Size Range0.1mm-6.5mm
    Tool Magazine Capacity300
    Spindle MaintenanceAutomatic chuck cleaning
    Positioning Accuracy±0.004mm
    Repeatability Accuracy±0.002mm
    Drilling Accuracy±0.017mm ( testing condition)
    Control MethodCBD High Precision Control
    Alignment SystemCCD High Definition Lens
    Blind Drilling Accuracy±0.015mm ( testing condition)
    Back Drilling AlignmentD+3mil ( testing condition)
    Air Requirement7-8bar
    Cooling Requirement17℃-20℃
    Power Requirement3PH-AC380V ±8%+PE, 50/60HZ 20KVA
    Temperature22±2℃
    Humidity50%-65%
    Dimensions (L*W*H)4600mm*2000mm*1590mm
    Weight13600kg
