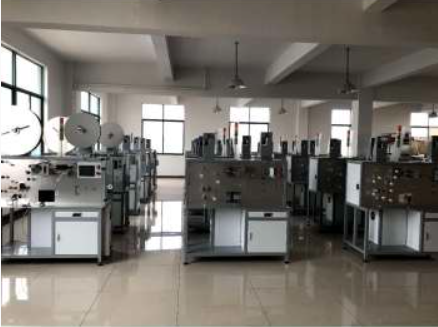

Carrier Tape Forming Machine
Key Features
- Feeding System: Brake automatic tension feeding with optical sensor signaling, PLC
control, and adjustable speed
- Feeding Buffer: Prevents tape bending and damage from unstable feeding
- Preheating System: PLC-controlled temperature system improves forming speed and
prevents air holes or defective tapes
- Forming System: Vacuum and hot air preheating with continuous rotary mould for
rapid molding and guided pocket formation
- Cutting System: Guidance mechanism with precision cutting wheel for accurate width
sizing and automatic offcut removal
- Punching Structure: High-precision mechanical working structure for continuous
high-speed EIA standard chain hole production
- Rolling Buffer: Automatic tension buffer with PLC control and adjustable speed to
prevent product damage
- Rolling System: Hierarchical order neat winding around tray with adjustable speed
Technical Specifications
| Model | YS-8000F |
|---|
| Feeding Tape Width | 8-27mm |
|---|
| Capacity | 600m/h |
|---|
| Products Standard | EIA Standard |
|---|
| Weight | 290KG |
|---|
| Dimension | 140×68×230cm |
|---|
| Power Supply | 220V 50-60HZ, 1.2KWA with reliable grounding |
|---|
| Air Supply | Compressed air inlet pressure ≥0.6 MPa, flow rate ≥2500 l/H,
oil-free, water-free, and dust-free |
|---|
| Environmental Requirement | Temperature below 28℃, dust-free workshop |
|---|
Packaging & Shipping
Our Services
Company Information
YUSH Electronic Technology Co., Ltd is a manufacturer and trader
specializing in the research, development, and production of PCB
depaneling machines, hot bar welding machines, and touch screen
film sticking machines. Located in Dongguan City, Guangdong
Province, China, with convenient transportation access. All
products comply with international quality standards and are
appreciated in various global markets. Contact us for product
inquiries or custom orders.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China, established in 2014. We serve markets
worldwide including Eastern Europe (20%), North America (20%),
South America (15%), Southern Europe (10%), Northern Europe (10%),
Western Europe (10%), South Asia (10%), and Mid East (5%). Our team
consists of 301-500 professionals.
How can we guarantee quality?
Pre-production sampling before mass production and final inspection
before shipment ensure consistent quality standards.
What can you buy from us?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB
depaneling equipment, and V-cut machines.
Why should you buy from us instead of other suppliers?
YUSH Electronic Technology Co., Ltd. was founded in 2004 and is
located in Jiangsu, a world manufacturing hub. We specialize in
professional PCB separator and depanelizer electronic equipment
machinery with advanced production facilities and experienced
technical teams.
What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union,
Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic,
Korean, Hindi
