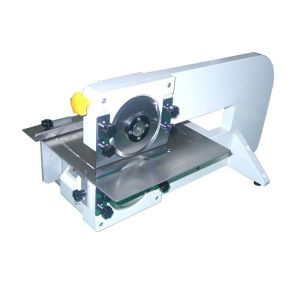

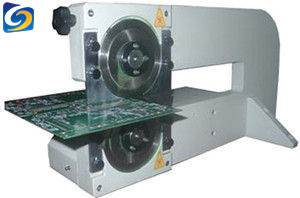

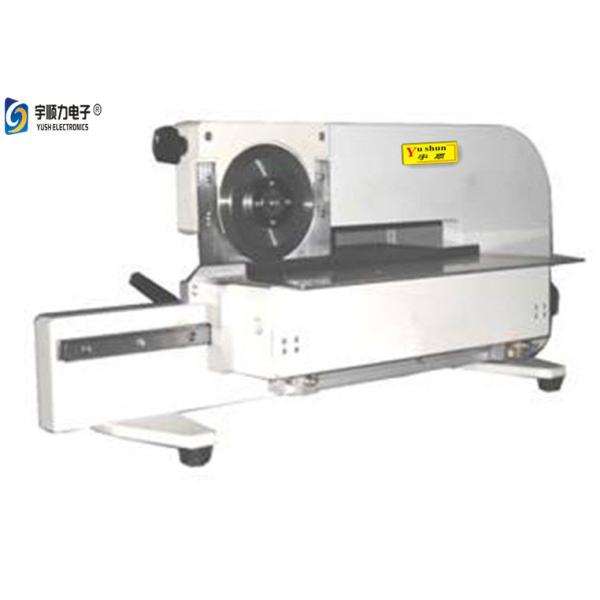

Customized Automatic PCB Depaneling Machine , Blade Moving Type

Specification:

Model No.: YSVC-1

Machine Dimension: 342 x 378 x 806 mm

Maximum Length of Cutting: 350 mm

Cutting Speed: 0-400mm / s

Cutting Thickness: 1.0-3.5mm

Voltage: 110 V / 220V

Weight: 40kg

Feature: 　

working tips: PCB remain one position, move blade. this will avoid component damage

hand control the moving rate

accuracy distance adjusting between upper and lower blade

customized cutting length is available, up to 610mm

normally the blades can be used 1 year

accessories are available for purchase

Application:

aluminum base board

copper substrate

FR4

glass fiber board

Maintenance:

take off the power botton and clean the machine after finish working
be careful to protect the upper and lower blade
move the blades and protect them with machine oil
check the screw fastening time to time

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
