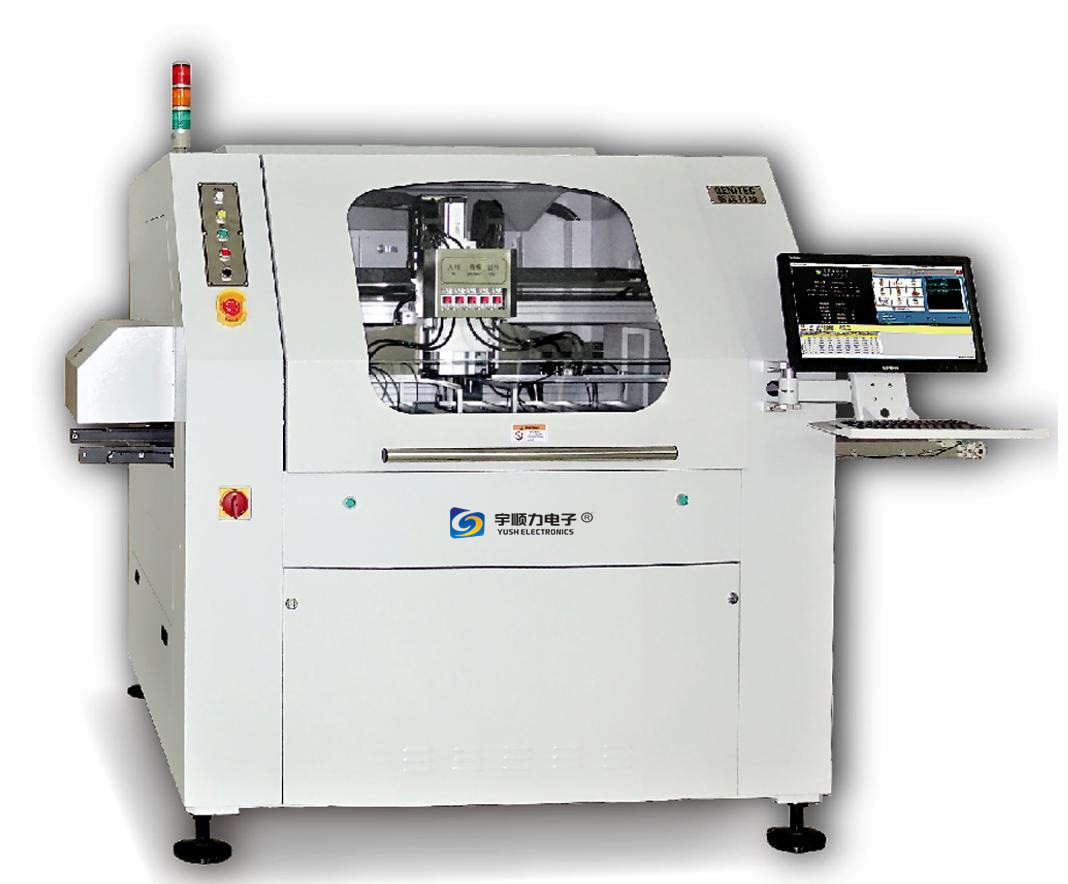

Product connection diagram
Product dimensions
Optional function
| Number | Name | Function |
| 1 | Bar code camera | Used to read the bar code on the PCB |
| 2 | Laser height module | Used to check whether the PCB is properly placed |
| 3 | CCD | Used to read the bar code on the PCB |
| 4 | Anti-riot dust collector | Prevent the collected dust from exploding |
| 5 | Fingerprint identification module | Operating log-in permits for different personnel |
| 6 | Tool diameter test module | CCD camera is used to detect the diameter of the milling cutter to
prevent the wrong use |
Product performance characteristics
• Equipped with automatic tool changing mechanism to avoid
industrial injury and misoperation.
• It has the function of automatic cutting and cutting detection.
• Z-axis has automatic compensation setting to automatically adjust
the depth of the milling cutter
SYCOTEC (Germany)/KAVOTEC (Taiwan) high speed spindle
• Rotational speed:60000-80000rpm (max)
• Power:500W (max)
• Accuracy:lum
Entry track
• With automatic width adjustment function.
• With automatic clamping and limiting device.
• Connect to front-end devices to deliver 900±50mmo height
• Board edge W5min.
Split-plate platform
• Single working platform.
• Automatic cover plate when in place.
• Use servo modules for load shifting and positioning.
• The suckers can be replaced modulatively.
Take and release module
• Put the PCB into the sub-board platform by adsorption on the left
side, and put the divided PCB into the back belt line by absorption
on the right side.
• Different types of sucker modules can be made for quick modular
replacement.
• Optional jaw type taking and discharging materials according to
customer needs.
Discharge platform
• The segmented PCB is connected to the rear assembly line by belt
transfer.
• Can be changed to pallet type according to customer requirements,
convenient to connect with the back end of the plate receiver,
testing machine, tin furnace and other equipment.
Counterpoint system
• CCD is used to automatically identify mark points for alignment,
to ensure the cutting path and ensure the cutting accuracy.
• It can recognize the whole board mark or single board mark.
Programming system
• Programming mode mainly adopts the quick programming after the
whole board scanning, and can also quickly modify the cutting path.
• You can edit offline programs through AUTO CAD or DXF files,
effectively saving online programming time
Suitable for PCBA segmentation of any shape
Milling cutter specification
1. Right-handed milling cutter, milling cutter rotation direction
and draft direction is consistent.
2. Carbon alloy milling cutter head:
a. Total length: 38.2 ± 0.30mm;
b. Handle diameter: 3.165 mm
c. Length of cutting section: 8± 0.50mm
d. Cutting section diameter: 0.8-3.0mm
Floating brush
Optimize the vacuuming module to improve the vacuum negative
pressure and ensure the vacuuming effect
Dust collector
• The upper and lower vacuuming modes are optional, with the
standard 4.5KW (6HP) upper dust collection and 3.75KW(5HP) lower
dust collection.
• Used to collect dust and debris in the PCB cutting process.
• Internal use of high horsepower motor and high efficiency fan,
high dust collection efficiency, and can minimize the dust adhesion
in the cutting product.
MES system
• Open MES docking port and BAR CODE scanning port functions free
of charge for life.
• To provide product traceability, equipment status, production
data collection management in the central information personnel.
Operating interface
• Simple operation interface, 9 steps covering all operation
processes.
• Clear classification of functional projects, simple setting of
milling cutter/fixture parameters
• Provide four levels of permission, and set operation permission
according to the job position.
• The "History window" can display and query operation records
Operation records and machine alarm records shall be kept by day.
Operator, technician operations can be traced.
Applicable product specification
