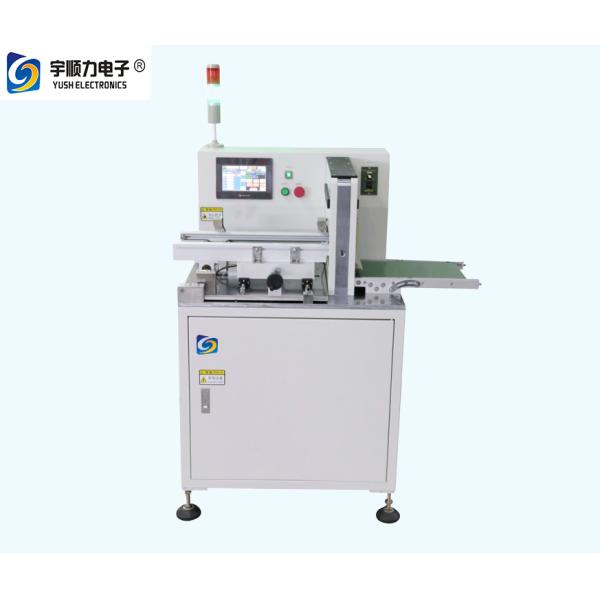

0.5~0.8Mpa Automatic PCB Depaneling Machine COB Automatic Guillotine Machine

YSV-4A Introduction Of Automatic Guillotine Machine:

YSV-4A is a single-direction depaneling device that can be connected to up and down automatic lines to realize automatic depaneling. Compared with other board depaneling machines, its biggest advantage is that its shear stress on the board components is very small, and the effect of non-destructive splitting is achieved, and the requirements for the board components are also very few. As long as it is a single direction splitting, it can be used. use. It uses the servo motor to feed and cut the material step by step, which also guarantees the cutting accuracy to the greatest extent. The automatic placement after cutting and the positioning preparation for the next process are also very easy to achieve.
The guillotine equipment has simple structure, easy operation, convenient maintenance, strong practicability, and low shear stress. It has been favored by all parties in the industry, but it cannot realize the automatic connection line. In order to meet the requirements of customers, our company has designed an automatic guillotine The equipment has become our company's weighted product, recommended to our customers, and won unanimous praise in the industry.

Features:
For the automatic pcb cutting equipment developed for the COB light source board, the microcomputer is used to control the automatic feeding board. Suitable for PCB board, aluminum substrate, copper board slitting. Widely used in automotive, power, computers, home appliances, mobile phones, connectors, LED and other industries.

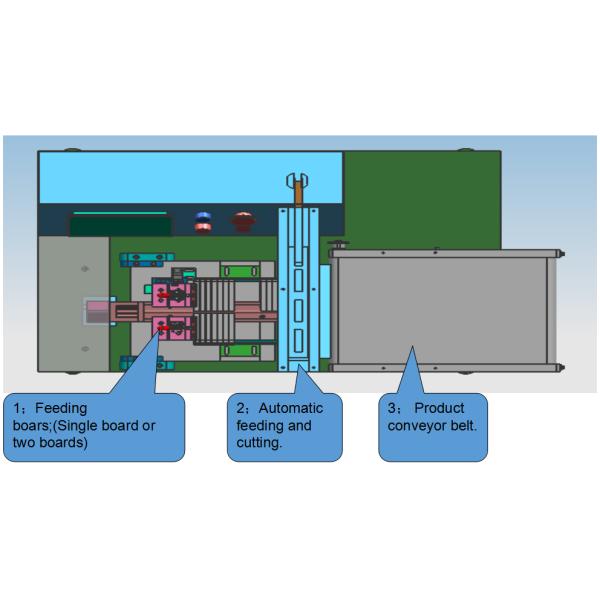

Equipment operation process:

COB board automatic board machine features:

1. For the pcb cutting equipment developed by COB light source board, the microcomputer is used to control the automatic feeding board.

2. Conveniently cut various COB substrates, bulb LED aluminum substrates, cob ceramic plates, etc.

3. The efficiency is 5~6 times faster than the traditional board machine.

4. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.

5, gas hybrid design, double straight knife slitting, especially suitable for dividing precision PCB board .

6. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.

7. Scythe work, suitable for various thickness MCPCB, the cutting stroke is below 2mm.

8, anti-dwelling structure design, there is no operational safety concerns.

Flow chart:

Specification Pratameter:
